Replacement Harbor Freight Backhoe / treacher hydraulic hoses
*** FREE USPS Priority Shipping with Hoses ***** Lower 48 , USA. Limited Time
All of our replacement hydraulic hoses are made in house. We use a 2 wire hose and our fitting ends are US manufactured. Our repacement hoses do not come with hose guard / hose protector.
With the help of our customers we have been able to identify / spec out most of these replacement hydraulic hoses , fittings & adaptors that we have listed with a selling price shown below.
If you need a hose or adaptor that we don't have priced below, send us a email and or a text with pictures of what you need and we will get back to you asap. 757 650 9124 sales@ranchhandsupply.com
Harbor Freight Parts, 800 444 3353 Harbor FreightHarbor Freight Part Number # Our Part Number # Description Diagram Ref# Cost Each plus shipping
Need to ID ??. Screws into hyd pump
Suction Side / Fluid in from oil tank.# 17239 # HF-17239 90° Elbow Fitting NO.4 64 $

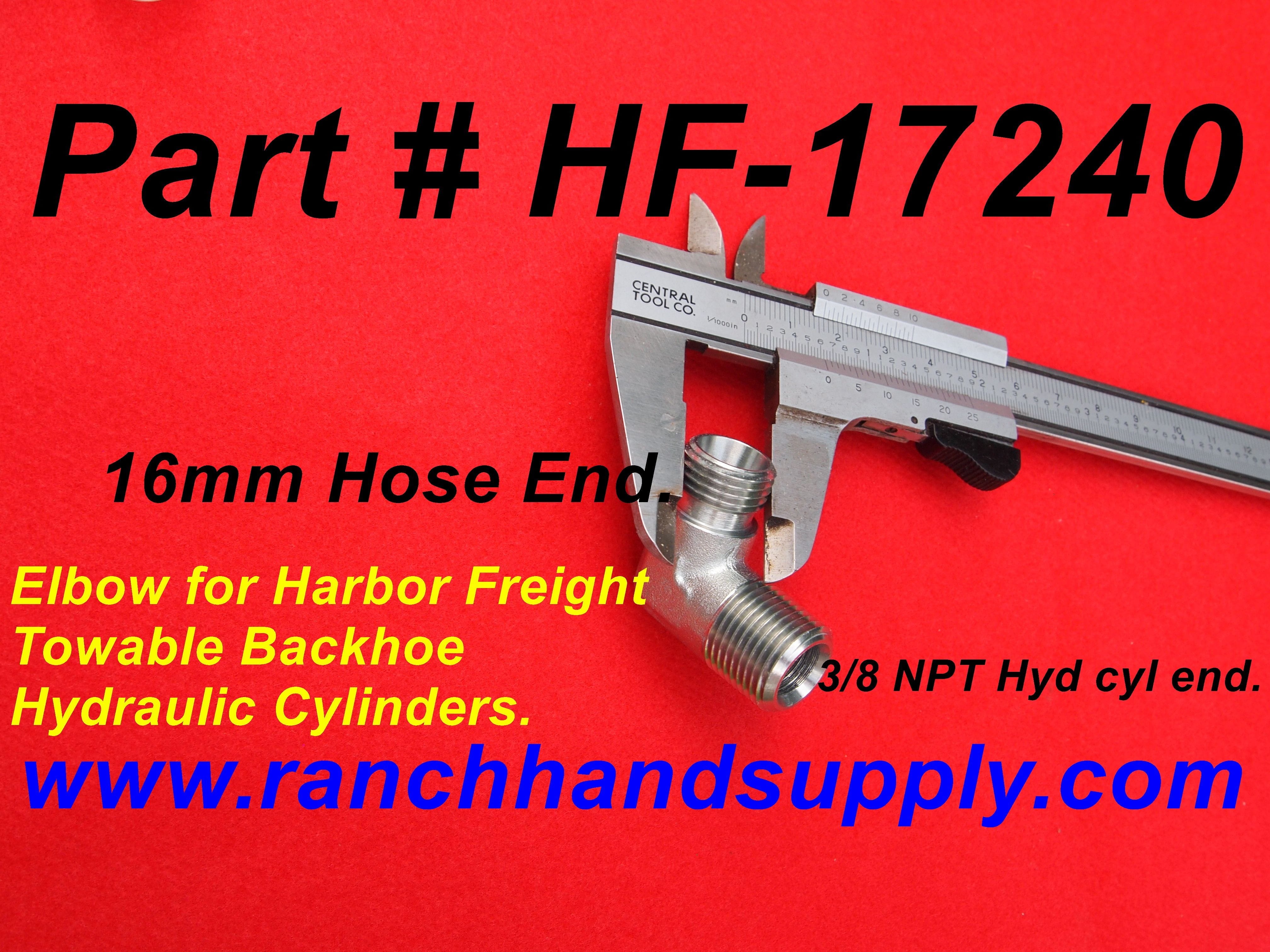

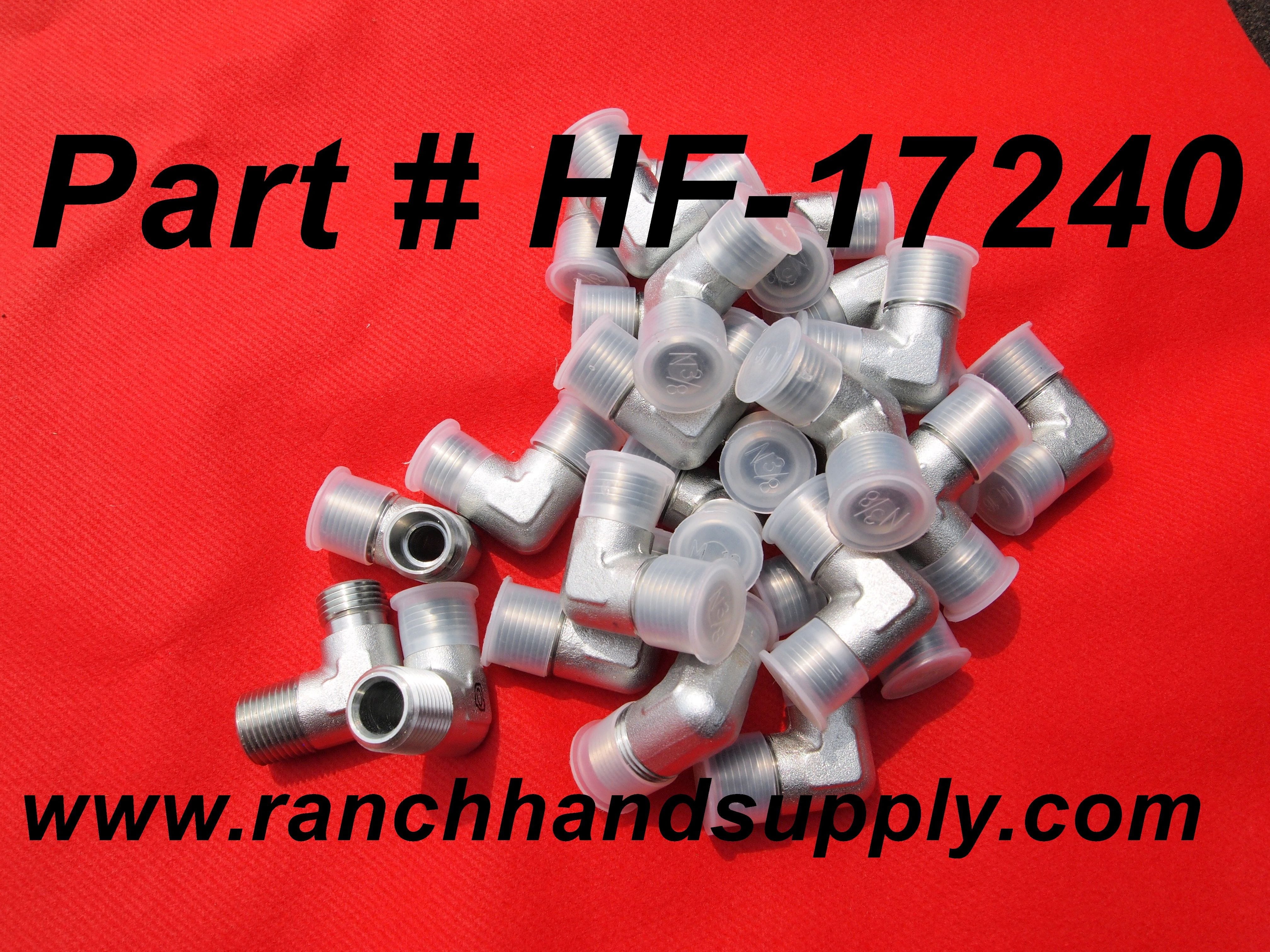

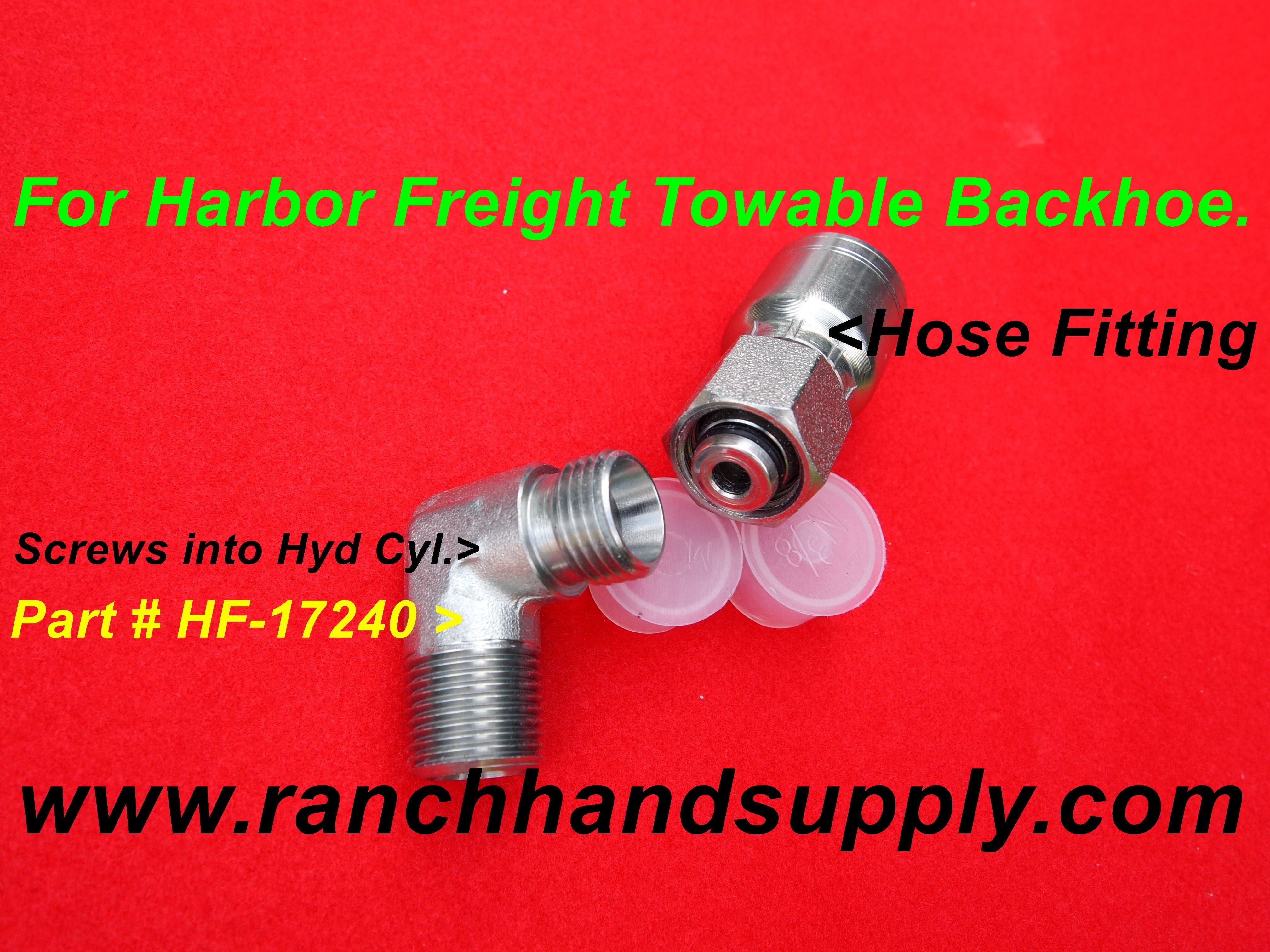

3/8 NPT X 16MM Screws into hyd cylinder.# 17240 # HF-17240 90° Elbow Fitting NO.1 25 / 25A $ 12.86

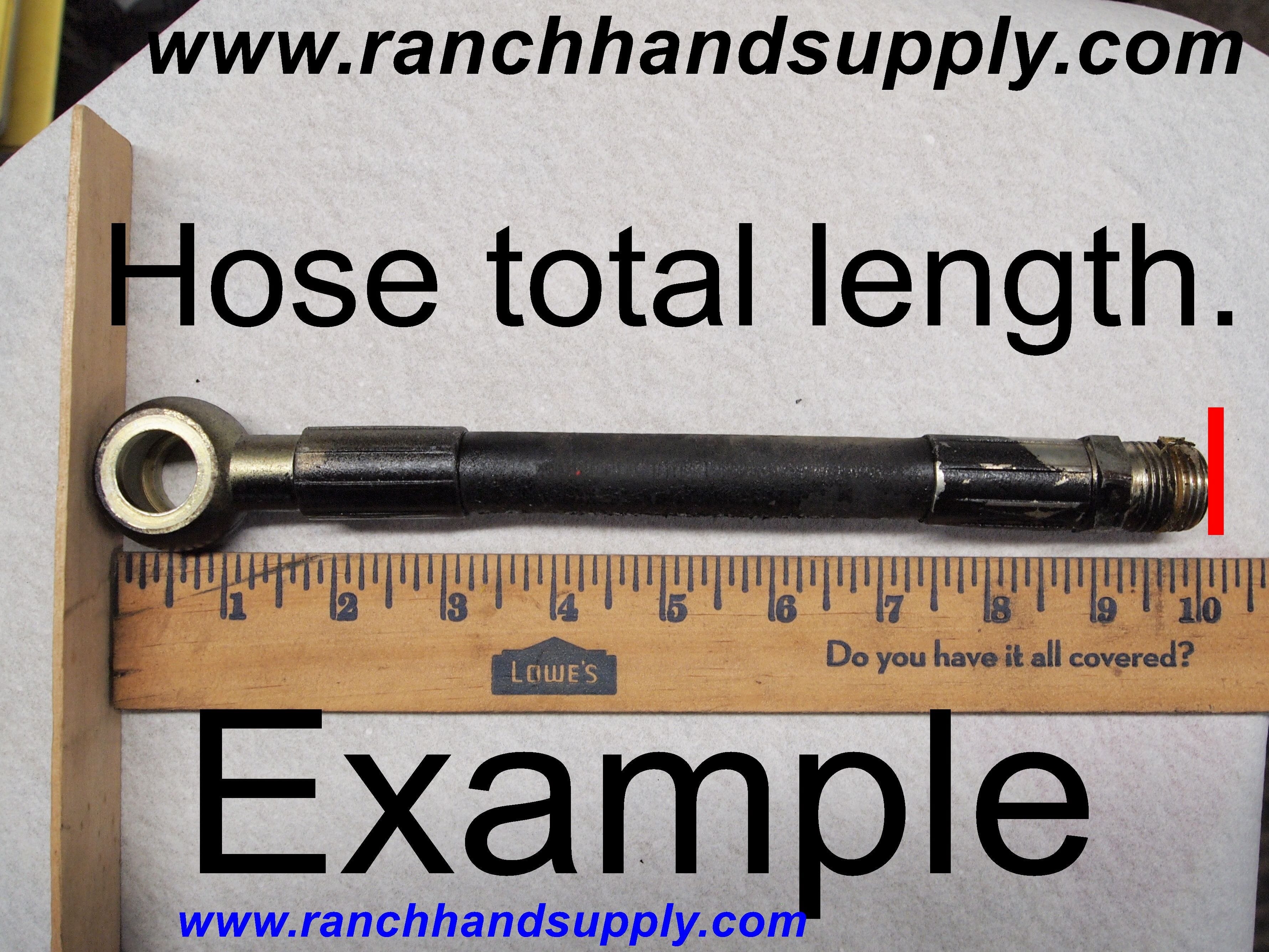

Need to ID ?? Hose total length, 50 Inches long. # 17249 # HF-17249 Hose Assembly NO.6 7 /07A $
Need to ID ?? Hose total length, 70 Inches long.# 17250 # HF-17250 Enter Hose Assy NO.1 13 / 13A $
Hose total length, 69 Inches long. For Boom Extension Cylinder. (extend). Straight female swivel fitting both ends. # 17251 # HF-17251 Hose Assembly NO.4 17 / 17A $ 58.65
Hose total length, 83 Inches long. For Boom Extension Cylinder. (retract). Straight female swivel fitting both ends. # 17252 # HF-17252 Hose Assembly NO.9 18 / 18A $ 70.55
Hose total length, 108 Inches long. For Bucket Cylinder. (extend). Straight female swivel fitting both ends.# 17254 # HF-17254 Hose Assembly NO.5 21 / 21A $ 91.80
Hose total length, 120 Inches long. For Bucket Cylinder. (extend). Straight female swivel fitting both ends.# 17255 # HF-17255 Hose Assembly NO.10 22 / 22A $ 120.10
Hose total length, 54 Inches long. For Main Boom Cylinder (extend). Straight female swivel fitting both ends.# 17260 # HF-17260 Hose Assembly NO.3 39 / 39A $ 45.90
Hose total length, 59 Inches long. For Main Boom Cylinder (retract). Straight female swivel fitting both ends.# 17261 # HF-17261 Hose Assembly NO.8 40 / 40A $ 50.15
Hose total length, 31 inches long. For Boom Swing Cylinder. (extend and or retract). Straight female swivel fitting both ends.# 17262 # HF-17262 Hose Assembly NO.2 46A $ 26.35
Need to ID ??. # 602105 # HF-602105 Outlet Hose 54 $
Need to ID ??. Screws into pump.
Supply Side / Pressure Side / Out Side.# 602106 # HF-602106 90Deg. Elbow Fitting NO.3 66/ 66A $
